K-SB-10试验数据采集系统

K-SB-10 Testing bench data gathering system

软件介绍

用传统手工方法和测量手段测量气体压力、温度、流量等参数, 不仅精度低, 速度慢,可靠性差, 而且测量时耗费人力; 采用以计算机为基础的《试验数据采集系统》可快速、准确测量气体压力、温度、流量等参数, 测量精度高, 测量数据可靠,并可自动完成数据处理、存储等任务。《试验数据采集系统》可大大节省人力,降低成本; 减轻劳动强度, 改善劳动环境; 测量速度的提高, 可减少测量时间, 提高工作效率; 采用《试验数据采集系统》, 可大大提高测量数据精度及可靠性, 为新产品开发设计、科研提供强有力的保证. 本产品可用于新产品开发试验测量, 产品常规试验测量及科研试验测量等多种场合。

采用《试验数据采集系统》, 可摆脱传统手工测量落后局面, 进入自动化、智能化测量新时代, 提高企业形象和在市场中的竞争力。

Software introduction

It is not only low precision, slow speed, poor reliability, but also labor-consuming to measure gas pressure, temperature, flow and other parameters by traditional manual methods and measurement means. The computer-based "Test Data Acquisition System" can quickly and accurately measure gas pressure, temperature, flow and other parameters, with high measurement accuracy and reliable measurement data, and can automatically complete data processing, storage and other tasks. "Test data acquisition system" can greatly save manpower and reduce costs; Reduce labor intensity and improve working environment; The improvement of the measuring speed can reduce the measuring time and improve the working efficiency; The adoption of "Test Data Acquisition System" can greatly improve the accuracy and reliability of measurement data, and provide a strong guarantee for the development, design and scientific research of new products. This product can be used in many occasions such as new product development test measurement, product routine test measurement and scientific research test measurement.

The adoption of that t data acquisition system can get rid of the backward situation of the traditional manual measurement, enter a new era of automatic and intelligent measurement, and improve the image of the enterprise and the competitiveness in the market.

K-SB-10试验数据采集系统

K-SB-10 Data Acquisition System

软件主要功能

根据用户测量需要, 可快速、灵活配置采集通道传感器及测量参数名称；
■ 支持采集参数自动采集功能, 实现采集参数自动采集、自动保存；
■ 采集系统的实时显示功能, 可实时地显示被测参数；
■ 支持非采集(人工测量)参数键盘输入功能, 实现非采集参数输入, 做到测量参数方法的多样性；
■ 支持传感器零漂补偿功能, 提高测量精度；
■ 单个工况多次采集参数功能，适合于用毕托管测量流量的场合使用；
■ 系统测量精度高, 重复性好；
■ 采用图形界面，操作简单，使用方便；无需专业人员，均可学会使用；
■ 全面支持Windows2000及WindowsXP；
■ 符合GB/T 1236-2000新标准。

《试验数据采集系统》可以与《通风机试验数据处理系统》联合使用，试验采集的数据可直接传送到《通风机试验数据处理系统》中,实现数据采集、处理一体化。

The main function of software

According to the user's measurement needs, it can quickly and flexibly configure the names of acquisition channel sensors and measurement parameters;

■ Support the function of automatic acquisition of acquisition parameters to realize automatic acquisition and automatic saving of acquisition parameters;

■ Real-time display function of the acquisition system, which can display the measured parameters in real time;

■ Support the keyboard input function of non-acquisition (manual measurement) parameters, realize the input of non-acquisition parameters, and achieve the diversity of measurement parameter methods;

■ Support the zero drift compensation function of the sensor to improve the measurement accuracy;

■ Multiple parameter acquisition function for single working condition, suitable for the occasion of measuring flow with Pitot tube;

■ The system has high measurement accuracy and good repeatability;

■ Graphical interface, simple operation, easy to use; no need for professionals, can learn to use;

■ Full support for Windows 2000 and Windows XP;

■ Meet the new standard of GB/T 1236-2000.

The test data acquisition system can be used together with the ventilator test data processing system, and the data collected in the test can be directly transmitted to the ventilator test data processing system to realize the integration of data acquisition and processing.

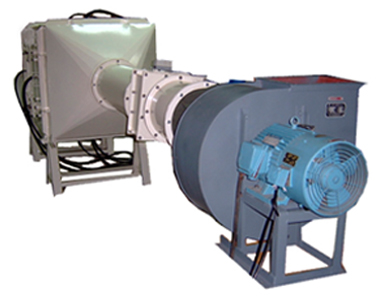

K-SB-10通风机试验数据处理系统

K-SB-10 Fanner test bench data processing system

软 件 介 绍

■ 采用图形界面和32位编程技术, 操作简单, 使用方便, 操作者无师自通；
■ 采用图文排版技术, 使文字、曲线与图形在本系统内一次完成及输出；
■ 采用模拟显示技术, 可直接在屏幕上显示所制作的报告, 所见所得；
■ 采用网络打印技术, 支持在网络打印机上输出及彩色打印；
■ 全面支持Windows98,Windows2000及Win XP。

软 件 功 能
■ 支持四种试验类型
　风室试验：A型出气试验、A型进气试验、B型出气试验和C型进气试验；
　风管试验：B型出气试验、C型进气试验、D型进出气试验(B型)和D型进出气试验(C型)；
■ 流量测量方法(锥型集流器、弧型集流器、毕托管和多喷嘴流量计)、
■ 功率测量方法(平衡电机法、扭矩仪法、电测法);
■ 根据屏幕显示的试验装置图输入试验装置数据和测试数据;
■ 自动处理试验数据, 计算结果自动生成表格;
■ 自动绘制试验风机的有因次性能曲线和无因次性能曲线;
■ 自动生成试验报告并可对试验报告进行编辑、修改和打印输出。
■ 符合GB/T1236-2000通风机试验新标准。

software introduction
■ Adopt graphical interface and 32-bit programming technology, easy to operate, easy to use, the operator is self-taught;

■ Adopt graphic-text typesetting technology, so that text, curves and graphics can be completed and output at one time in the system;

■ Using analog display technology, the report produced can be displayed directly on the screen, what you see and what you get;

■ Network printing technology is adopted to support output and color printing on network printers;

■ Full support for Windows 98, Windows 2000 and Win XP.

software function
■ Four types of trials are supported

　Wind chamber test: Type A air outlet test, Type A air inlet test, Type B air outlet test and Type C air inlet test;

　Air duct test: Type B air outlet test, Type C air inlet test, Type D air inlet and outlet test (Type B) and Type D air inlet and outlet test (Type C);

■ Flow measurement methods (cone type header, arc type header, pitot tube and multi-nozzle flowmeter),

■ Power measurement method (balance motor method, torque meter method, electrical measurement method);

■ Input the test device data and test data according to the test device diagram displayed on the screen;

■ Automatic processing of test data and automatic tabulation of calculation results;

■ Automatically draw the dimensional and dimensionless performance curves of the test fan;

■ Test reports are automatically generated and can be edited, modified and printed out.

■ Meet the new standard of GB/T1236-2000 fan test.
